Open the CAD file inside the Redmine issue.
A CAD 2D/3D viewer that opens a STEP, IGES, DXF or STL attachment inside the issue itself — eight formats in all, with no per-seat proprietary licence, no viewer to install, no file to download. It is one of the plugins that came out of real production work in a metalworking plant, and it has been running for over a year.
Three ways to work together
What Bueno Labs does
Plugins that came out of daily production work — some free, some paid and adapted to your process — plugins written from scratch for what you do, and help keeping an existing Redmine alive across upgrades. All of it in Ruby, all of it with the source in your hands.
Plugins: free and paid
Born on the shop floor. Some released free under GPL v2, some paid and adaptable to your process.
Free: CAD 2D/3D viewer, time punch and notification bridge. Also built: engineering codes, a health & safety module, prioritisation and production control — the last two are paid products, adaptable to your process. Compatibility being validated. First target matrix: Redmine 6.1.3 and 7.0.0.
See the plugins →
Custom development
A plugin shaped around your process instead of a process shaped around a tool.
Request portals with approval, scored queues, automatic task trees, WIP-limited kanban, planned-versus-actual charts, load plans. Built on your real issues, not on a parallel database, and with no Redmine core files edited.
See what can be built →
Support & migration
Redmine 7.0 broke plugins across the board. Getting yours back is a job, not a gamble.
Installation, upgrade planning and porting of plugins that stopped loading on Rails 8 and Ruby 4.0 — including plugins written by someone else, as long as you have the source.
Ask about a rescue →

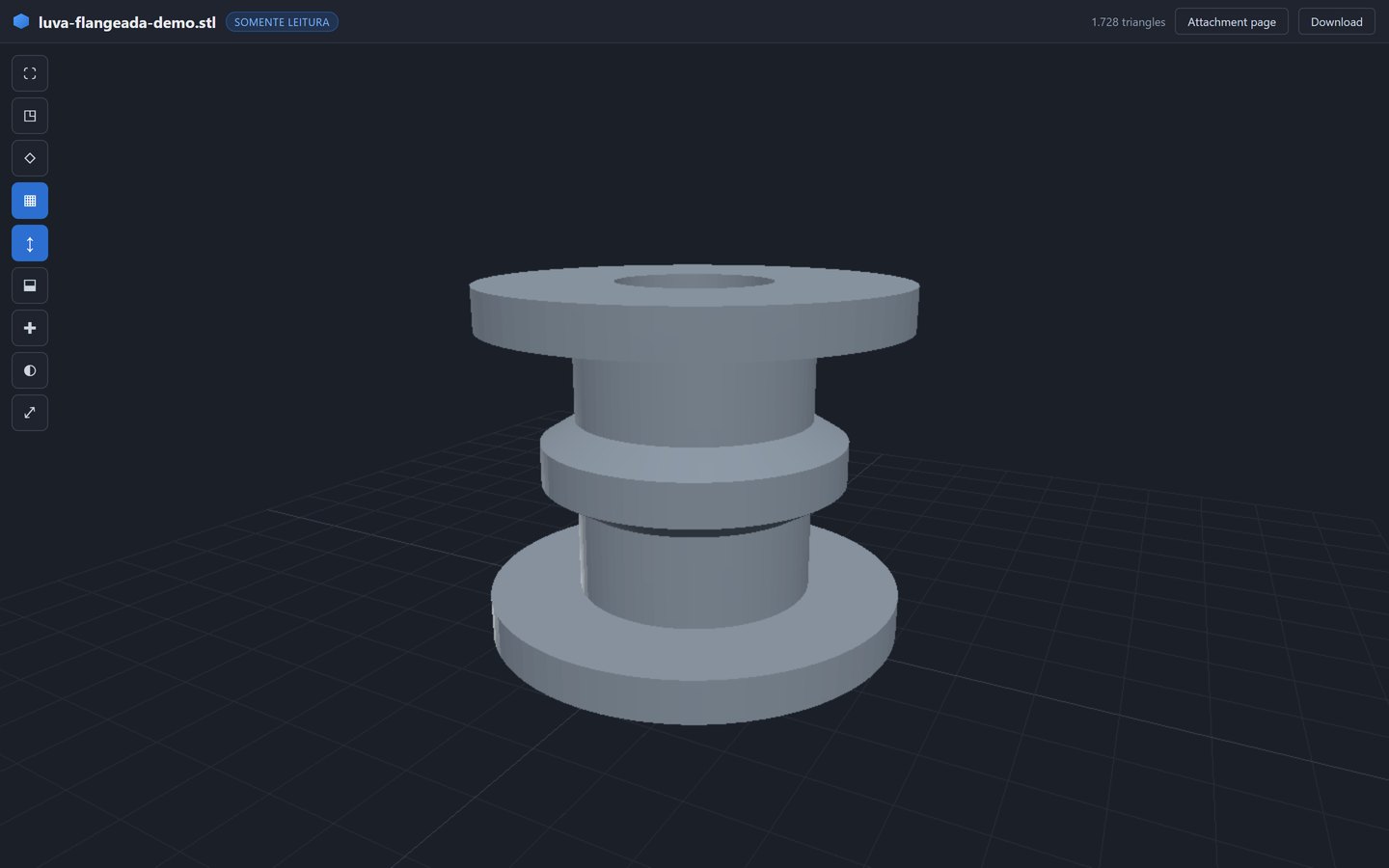

Nº BL-101 · redmine_3dviewer · v0.1.0 · early access
CAD files open where the work already happens
In a survey of all 868 plugins in the official Redmine directory (August 2026), searching for CAD, STEP, STL, IGES, DWG, DXF, 3D or BIM returned nothing — free or paid. This CAD 2D/3D viewer opens eight formats on the issue page itself, and it will be free. Early access — join the list to follow the first public release.
STEP, IGES and BREP
OpenCascade compiled to WebAssembly, running in a Web Worker — the page never freezes while a large assembly loads.
DXF with layers
Native DXF rendering with a layer panel, so a drawing can be read the way it was drawn.
DWG on the roadmap
DXF is supported natively today. DWG support is planned for a later release.
Mesh formats too
STL, OBJ, PLY and glTF/GLB through three.js, in the same viewer and with the same controls.
Thumbnails in the issue
Every CAD attachment gets an automatic preview in the attachments block, so a list of files stops being a list of file names.
Tested on real files
A 62 MB IGES with 1.6 million triangles and 357 parts. On machines without a GPU it detects the limit and lowers render cost by itself.
Nothing to configure
No database migrations, no new gems, no required settings. It respects the attachment permissions Redmine already enforces.
Proven in production
Over a year in an industrial Redmine instance with thousands of issues and attachments, used daily by engineering.
Who signs it
Built by someone who lives the problem
Bueno Labs is the workshop of Philipe Bueno, a manufacturing engineer with more than 18 years in the metalworking industry in Brazil. Not an agency that learns your process from a briefing — someone who spent a career inside it: welded joints, engineering backlogs, time entries nobody logged, and drawings lost in a network folder.
Every plugin here started as one of those problems. The CAD 2D/3D viewer exists because engineers were downloading STEP files to a workstation just to check which part a request was about. The time punch exists because hours were being reconstructed from memory at the end of the week. The health & safety module exists because occupational medicine records were living in folders nobody could audit. Each one was written for daily use first and polished for release afterwards.
They run today in an industrial Redmine instance with thousands of issues and attachments, and they have been running for over a year. That path — from a real problem to software in production — is what Bueno Labs offers.
Source included, always
A Redmine plugin is a derivative work: the Ruby code is GPL v2 by law, and Bueno Labs treats that as a feature. No obfuscated files, no proprietary blobs, no lock-in.
Install without drama
No forced migrations, no exotic gems, no Redmine core files edited. A plugin that is hard to install is a plugin that gets removed at the next upgrade.
Production, not prototype
Everything published here has already survived a shift change, a slow network and a 62 MB file somebody attached without warning.
Also on the bench
Other platforms
Two systems outside the Redmine world, built with the same rules: open stack, data on your own network, no subscription.
Nexo PLM
Product lifecycle management in Python: multilevel BOM, change control, a drawing vault and a 3D viewer — running fully offline on your own intranet.
See the platforms →
Mover Saúde
A multidisciplinary health platform: records, scheduling and a patient portal, with each specialty seeing only what belongs to it.
See the platforms →
Contact
Tell me what your Redmine is missing
A plugin that broke on 7.0, a process that lives in a spreadsheet file, or a CAD file nobody can open without a workstation. The plugins are in early access: write and I will put you on the list for the first public release. I answer in English or Portuguese.
